Homemade Rifle Cleaning Stand

By Johan PC Prinsloo

Front View
Length 640mm x Width 270mm x Height 360mm


Diagonal Front View


Top View


Side (Stock) View
Stock "V": Bottom-end diameter: 38mm x Top-end diameter: 80mm
Barrel "V": Bottom-end diameter: 38mm x Top-end diameter: 50mm

Looking at the far end, which is where the rifle barrel rests, one would notice it looks like Bull-horn. The bull-horn is 145mm wide and sunk 25mm deep.

At both sides of the Stock and Barrel rests are also two indents used for cleaning rods.
Cleaning rod indent diameter : 25mm


Front View with .270 Win

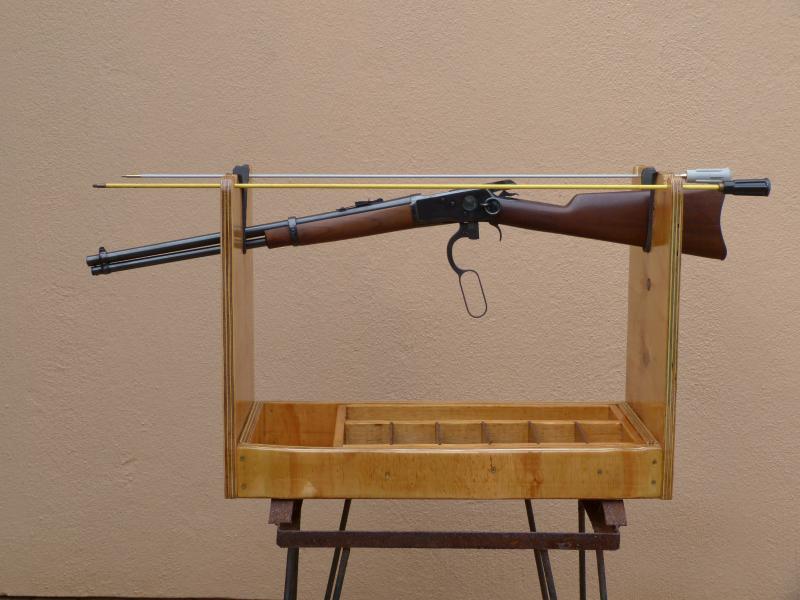

Front View with Short Lever-action Rifle


Front View with Long Single-shot Shotgun

The Rifle Cleaning Stand was built using 18mm shutter-ply board and painted with UV / Heat resistant exterior varnish.

The Stand was built around a bolt-and-nut tray that was lying around.
